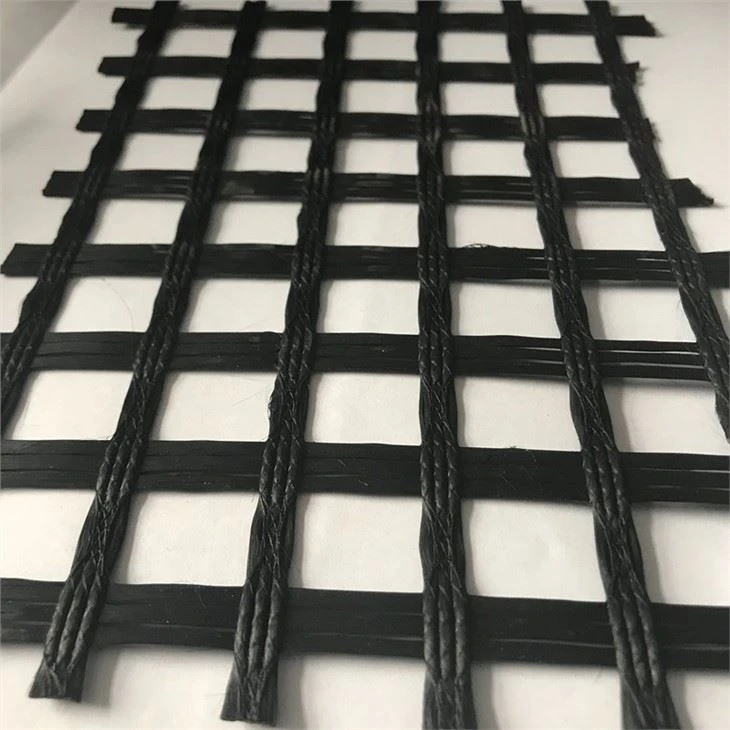

Introduction of Fiberglass Pavement Geogrid:
Fiberglass geogrid is a new type of excellent geotechnical base material for strengthening pavement and roadbed. The product is made of alkali-free glass fiber filament as the main raw material, and is woven by a unique warp weaving process. A mesh structure material coated with special rubber. Stress distribution of road structures. Resists and delays the occurrence of reflective cracks due to cracks in the base layer. Improve the service life of roads. And can reduce the cost. Improve construction quality.
The main components of glass fiber are: silicon oxide, which is an inorganic material. Its physical and chemical properties are extremely stable, and it has high strength, high modulus, high wear resistance and excellent cold resistance, no long-term creep; thermal stability Good performance; the mesh structure makes the aggregate interlock and limit; improve the load-bearing capacity of the asphalt mixture. Because the surface is coated with special modified asphalt, it has dual composite properties, which greatly improves the wear resistance and shear capacity of the geogrid.
Application of Fiberglass Geogrid
1) Roadbed reinforcement, prevent road surface crack.
2) Road reconstruction
3) Soft soil reinforcement, improve road whole bearing capacity and prevent crack.
Specification of Fiberglass Geogrid:
Property | TGSB30-30 | TGSB50-50 | TGSB60-60 | TGSB80-80 | TGSB100-100 | |
Ultimate Tensile Strength | MD | 30 | 50 | 60 | 80 | 100 |
CD | 30 | 50 | 60 | 80 | 100 | |
Elongation (%) | MD | 3 | ||||
CD | 3 | |||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | |||||
Roll Width (m) | 1-6 | |||||
Roll Length (m) | 50-200 | |||||
Property | TGSB100-100 | TGSB150-150 | TGSB160-160 | TGSB200-200 | |
Ultimate Tensile Strength | MD | 100 | 150 | 160 | 200 |
CD | 100 | 150 | 160 | 200 | |
Elongation (%) | MD | 3 | |||
CD | 3 | ||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | ||||
Roll Width (m) | 1-6 | ||||
Roll Length (m) | 50-200 | ||||
