Product Details

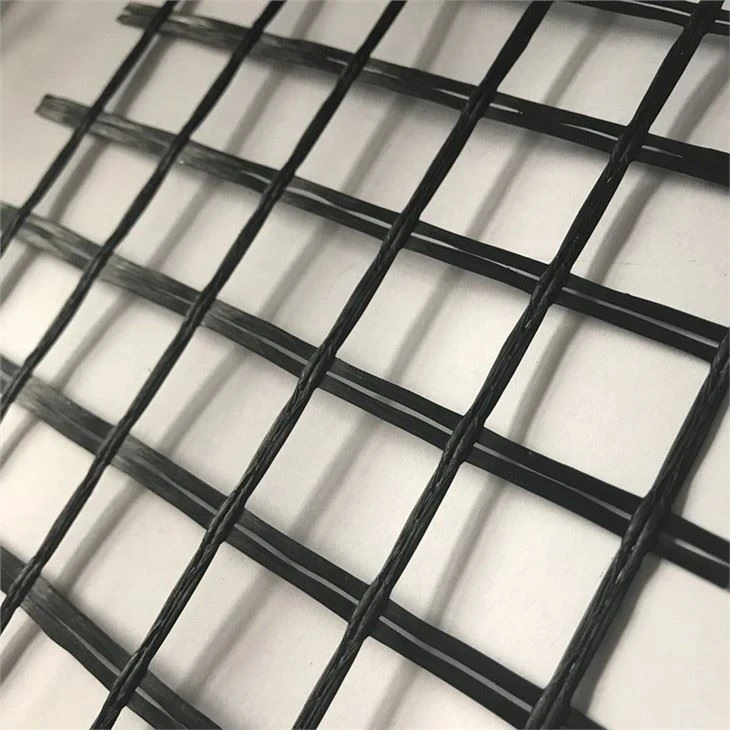

Introduction of Fiberglass Geogrid:
The warp-knitted glass fiber geogrid is made of glass fiber by weaving and coating.
Fiberglass geogrid is a new type of excellent geotechnical base material for strengthening pavement and roadbed. The product is made of alkali-free glass fiber filament as the main raw material, and is woven by a unique warp weaving process. A mesh structure material coated with bitumen.
Application of Fiberglass Geogrid
- Reinforcement for road pavement
- Reinforcement for railway basement
-Reinforcement for Tunnel
- Reinforcement for Slope
- Reinforcement for embankment
-Soft soil reinforcement, improve road whole bearing capacity and prevent crack
Specification of Fiberglass Geogrid:
Property | TGSB30-30 | TGSB50-50 | TGSB60-60 | TGSB80-80 | TGSB100-100 | |
Ultimate Tensile Strength | MD | 30 | 50 | 60 | 80 | 100 |
CD | 30 | 50 | 60 | 80 | 100 | |
Elongation (%) | MD | 3 | ||||
CD | 3 | |||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | |||||
Roll Width (m) | 1-6 | |||||
Roll Length (m) | 50-200 | |||||
Property | TGSB100-100 | TGSB150-150 | TGSB160-160 | TGSB200-200 | |
Ultimate Tensile Strength | MD | 100 | 150 | 160 | 200 |
CD | 100 | 150 | 160 | 200 | |
Elongation (%) | MD | 3 | |||
CD | 3 | ||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | ||||
Roll Width (m) | 1-6 | ||||
Roll Length (m) | 50-200 | ||||
Production of Asphalt Reinforcement Fiberglass Geogrid:
Packing & Shipping
Packaging Details: PE films and colored tape. We provide OEM mark.
Our Company Information
Lianyi is the professional geosythetic products manufacturer, supplier, wholesaler and exporter dedicated in supplying one stop geosynthetic products and services to worldwide customers since its foundation in 2002. We have over 600professional staffs and 30,000 square meters manufacturing factory. Lianyi had been specializing in delivering one stop geosynthetics products and solutions to worldwide customers since its foundation in 2002. Lianyi had provided many types of effective and state of the geogrid, geotextiles, geocells, geomembrane, drainage boards, to over 100 countries.Lianyi is not only manufacturing best quality geosynthetics products but also providing professional design and nstallation service. OEM, ODM, custom development and fabrication are also available.
