Product Details

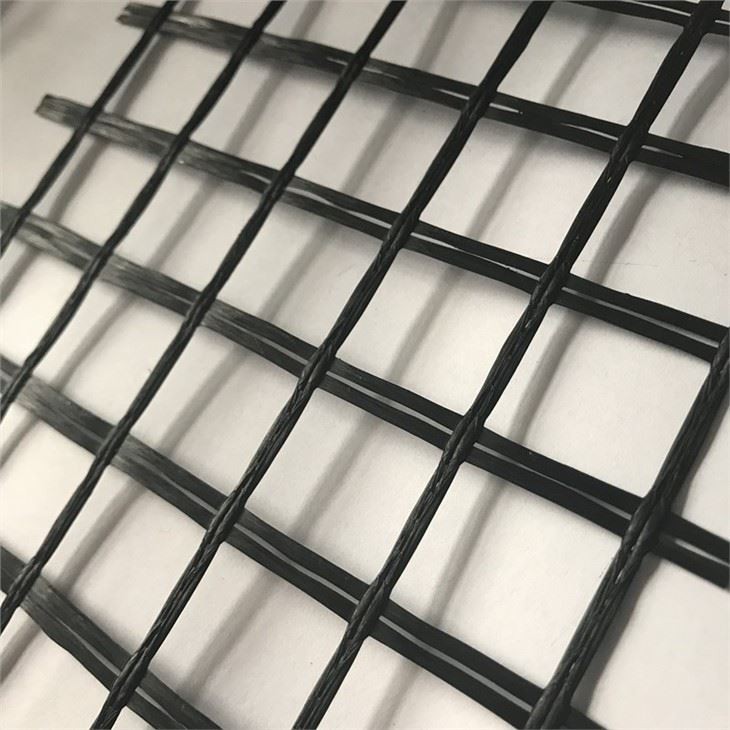

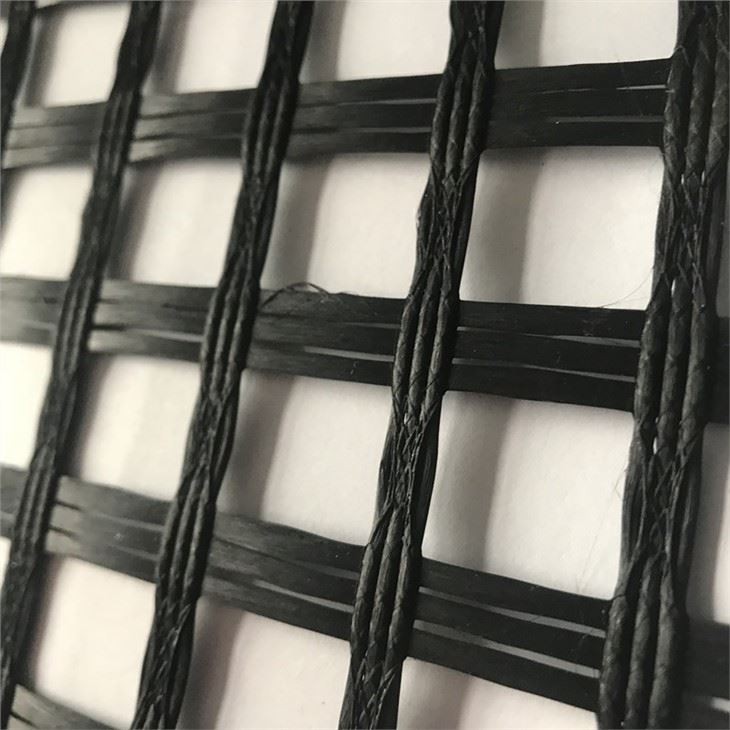

Introduction of Glass Grid:
GlasGrid-is an exceptionally strong, self-adhesive reinforcement material specifically developed for pavements. It reduces tensile stresses in the asphalt concrete and distributes them over a greater area, which slows down or even prevents reflective cracking.
Type: Geogrids
Place of Origin: Shandong, China (Mainland)
Brand Name: Geotec
Model Number: ITB,TBU,UKAS,ASTM,30kn-200kn/m 3% Elongation Fiberglass Geogrid
Material: Fiberglass
Fiberglass Geogrid Certificate:ISO9002,ITB,TBU,UKAS,ASTM
Fiberglass Geogrid Coating Material:Modified asphalt Polymer,SBR or PVC
Fiberglass Geogrid Width: 0.5m-6m
Fiberglass Geogrid Tensile Strength:30KN-200KN
Fiberglass Geogrid Roll length:25m,50m,100m
Application of Fiberglass Geogrid
Fiberglass geogrid are extensively used for the reinforcement of asphalt pavement, concrete pavement and roadbeds. Compared to traditional materials, the use of fiberglass geogrids can reduce construction costs, extend road service life, and prevent deflection cracks. They can also be used to reinforce roadbeds in soft soil for railways, airfields, irrigation channels, and water dams.
Specification of Fiberglass Geogrid:
Property | TGSB30-30 | TGSB50-50 | TGSB60-60 | TGSB80-80 | TGSB100-100 | |
Ultimate Tensile Strength | MD | 30 | 50 | 60 | 80 | 100 |
CD | 30 | 50 | 60 | 80 | 100 | |
Elongation (%) | MD | 3 | ||||
CD | 3 | |||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | |||||
Roll Width (m) | 1-6 | |||||
Roll Length (m) | 50-200 | |||||
Property | TGSB100-100 | TGSB150-150 | TGSB160-160 | TGSB200-200 | |
Ultimate Tensile Strength | MD | 100 | 150 | 160 | 200 |
CD | 100 | 150 | 160 | 200 | |
Elongation (%) | MD | 3 | |||
CD | 3 | ||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | ||||
Roll Width (m) | 1-6 | ||||
Roll Length (m) | 50-200 | ||||
Packing & Shipping
Packaging Details: PE films and colored tape. We provide OEM mark.
