Product Details

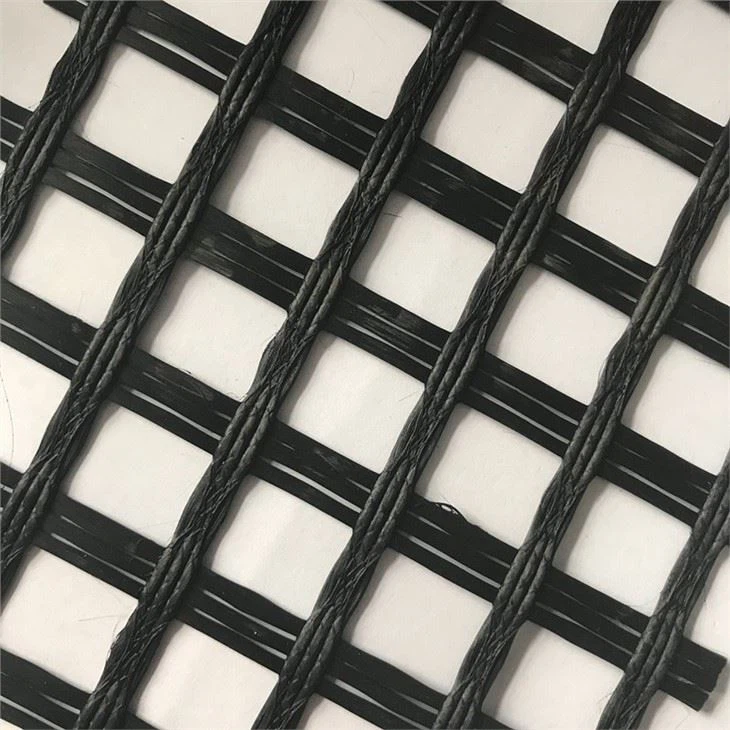

Introduction of Fiberglass Pavement Geogrid:
●High tensile strength with low elongation
● Excellent temperature resistance and good compatibility with asphalt.
● Reducing reflective cracking of the road.
● Easy installation and lower maintenance cost.
Features of Fiberglass Geogrid
1) Roadbed reinforcement, prevent road surface crack.
2) Road reconstruction
3) Soft soil reinforcement, improve road whole bearing capacity and prevent crack.
Specification of Fiberglass Geogrid:
Property | TGSB30-30 | TGSB50-50 | TGSB60-60 | TGSB80-80 | TGSB100-100 | |
Ultimate Tensile Strength | MD | 30 | 50 | 60 | 80 | 100 |
CD | 30 | 50 | 60 | 80 | 100 | |
Elongation (%) | MD | 3 | ||||
CD | 3 | |||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | |||||
Roll Width (m) | 1-6 | |||||
Roll Length (m) | 50-200 | |||||
Property | TGSB100-100 | TGSB150-150 | TGSB160-160 | TGSB200-200 | |
Ultimate Tensile Strength | MD | 100 | 150 | 160 | 200 |
CD | 100 | 150 | 160 | 200 | |
Elongation (%) | MD | 3 | |||
CD | 3 | ||||
Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | ||||
Roll Width (m) | 1-6 | ||||
Roll Length (m) | 50-200 | ||||
Application:
(1) Reinforcement of roads, railways and airport roads;
(2) Maintenance, reconstruction and widening of old road surface (asphalt road or cement concrete road);
(3) Reduces construction cost, extends service life of roads and prevents deflection cracks.
(4)It is applied in old asphalt cement pavement to reinforce the asphalt surface, and prevent diseases;
(5)It is applied in cement pavement to reconstruct composite road surface, and restrain plate shrink to cause reflection crack;
(6)It is applied in reconstruction project of road to prevent cracks caused by connection of old and new roads and differential settlement;
(7)It is applied in reinforcement of soft earth bed, which is benefit for soft earth to absorb water and fix, restrain settlement effectively, and reinforce the strength of roadbed;
(8)The semi-rigid base of new-built road is easy to produce shrinkage crack, fiberglass geogrid can reinforce the crack of the road surface caused by crack reflection.
