Description

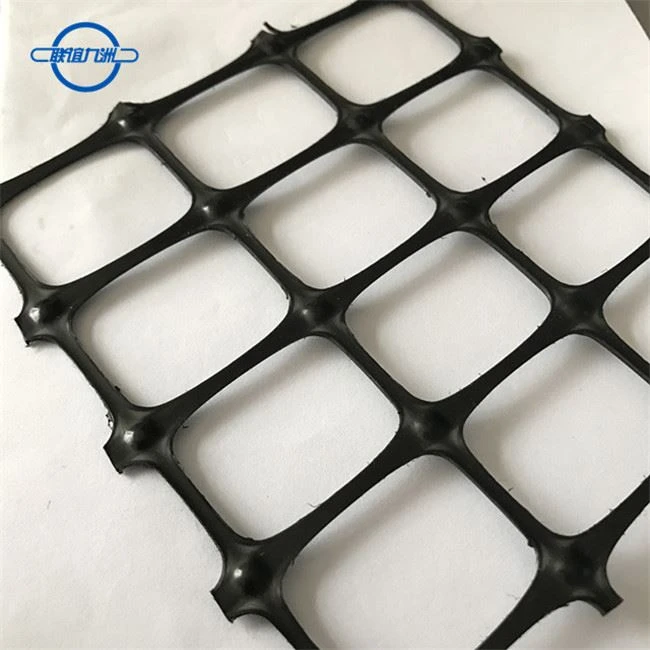

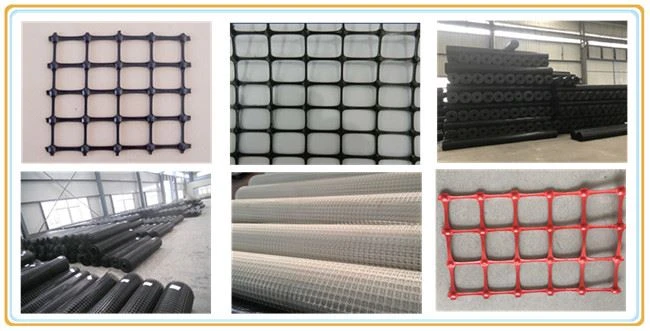

PP Plastic Biaxial Geogrid is made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material.
PP Plastic Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost.
PP Plastic Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
Specification
Specification | Test Method | BX1515 | BX2020 | BX2525 | BX3030 | BX4040 | BX1100 | BX1200 | BX3030L | |||||||||
Index | Unit | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | MD | XMD | |
Ultimate Tensile strenth | D6637 | KN/m | 15 | 15 | 20 | 20 | 25 | 25 | 30 | 30 | 40 | 40 | 12.4 | 19.0 | 19.2 | 28.8 | 30 | 30 |
Aperture Size | mm | 39 | 39 | 39 | 39 | 39 | 39 | 39 | 39 | 39 | 39 | 25 | 33 | 25 | 33 | 65 | 65 | |
Minimum Rib Thickness | mm | 1.0 | 0.8 | 1.5 | 1.1 | 1.8 | 1.4 | 2.2 | 1.7 | 2.5 | 2.0 | 1.0 | 0.8 | 1.4 | 1.27 | 1.7 | 1.5 | |
Tensile Strength @2% Strain | D6637 | KN/m | 6 | 6 | 7 | 7 | 9 | 9 | 11 | 11 | 15 | 15 | 4.1 | 6.6 | 6 | 9 | 11 | 11 |
Tensile Strength @5% Strain | D6637 | KN/m | 11 | 11 | 13 | 13 | 17 | 17 | 21 | 21 | 27 | 27 | 8.5 | 13.4 | 11.8 | 19.6 | 21 | 21 |
Junction Efficiency | % | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | |||||||||
Flexural Stiffness | D7748 | mg-cm | 690,000 | 780,000 | 860,000 | 960,000 | 1,000,000 | 250,000 | 750,000 | 960,000 | ||||||||
Aperture Stability | m-N/deg | 0.30 | 0.50 | 0.62 | 0.75 | 0.85 | 0.32 | 0.65 | 0.75 | |||||||||
Resistance to Installation Damage | %SC/ %SW/ %GP | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 | |||||||||
Resistance to Long Term Degradation | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||||||||
Resistance to UV Degradation | D4355 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
Minimum Cabon Black | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
Unit Weight | g/m2 | 175-210 | 220-250 | 260-300 | 300-340 | 450-500 | 180-210 | 280-310 | 320-360 | |||||||||
Rolls Dimensions (Length, Width) | m | 100*3.95 | 50*3.95 50*5 | 50*3.95 50*5 | 50*3.95 50*5 50*5.95 | 50*3.95 | 75*3.95 75*5 75*5.95 | 50*3.95 50*5 | 50*3.95 50*5 | |||||||||

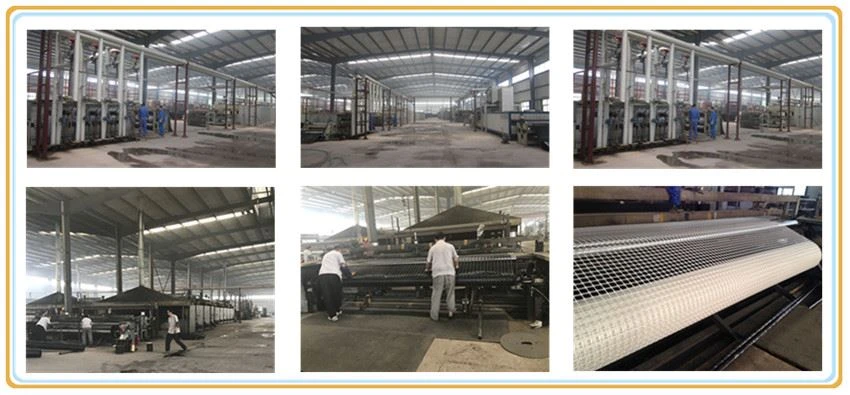

Production

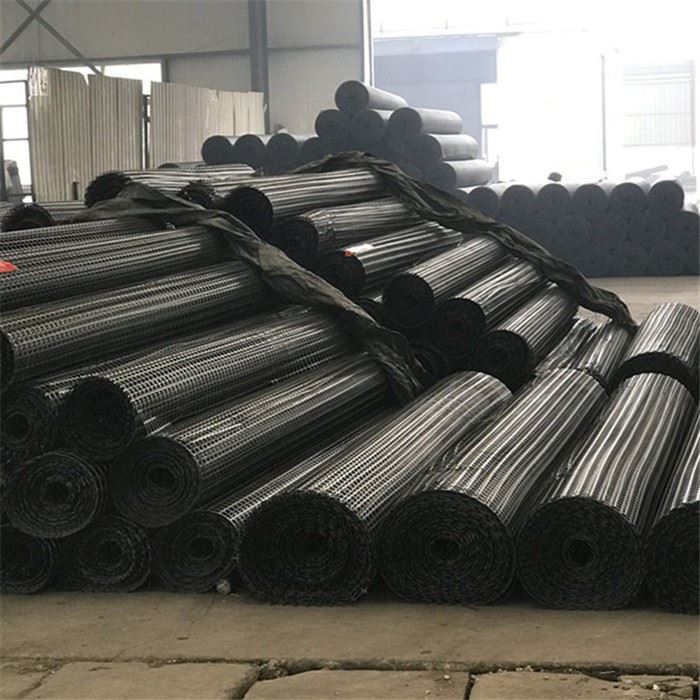

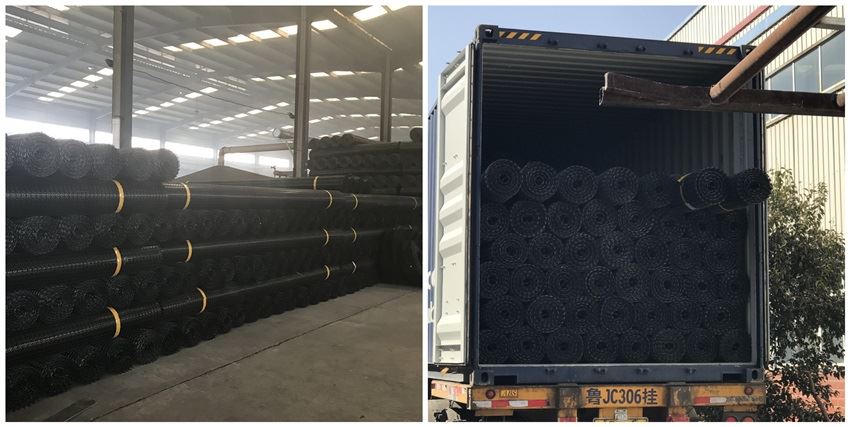

Packing & Shipping:
PP Plastic Biaxial Geogrid
Packing Details : White or Yellow tape. We provide OEM mark.
Our Company
Feicheng Lianyi Engineering Plastic Co., Ltd has been a leader market for more than 16 years in manufacturing geosynthetics material for domestic and export markets.
The products we product are Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid,Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with light weight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid ( PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE Geomembrane, HDPE Geocell,Mining Geogrid, Geonet, PP Woven Geotextile etc.
