Description

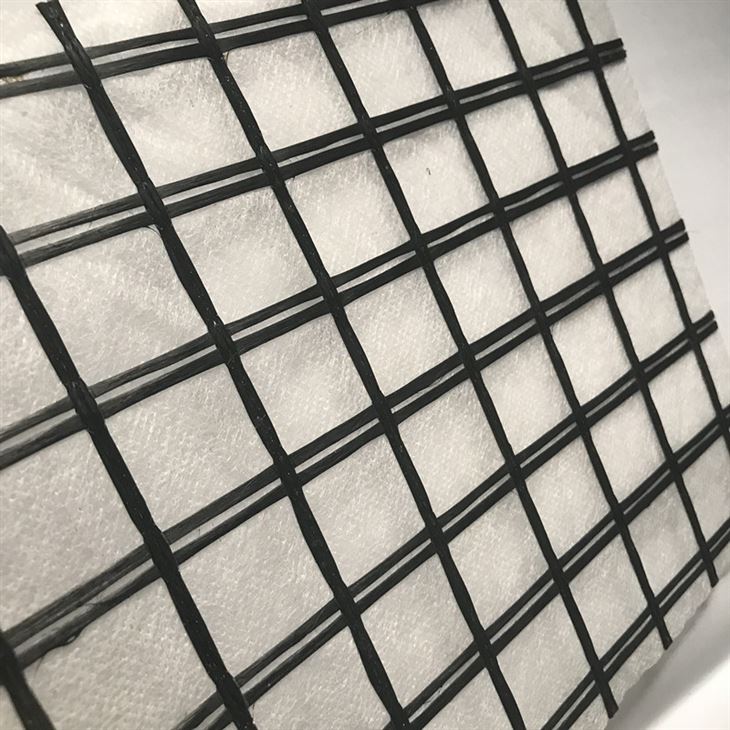

Fiberglass geogrid composite geotextile is the composite material of filberglass geogrid and short fiber needle-punched non-woven geotextile.
Specification
Geogrid Composite Geotextiles Technical Parameters | |||||||
Categories | Model | Cracking-intensity (KN/m) | Break elongation ratio (%) | Mesh Size (mm*mm) | Breadth (m) | ||
Longitudinal | Crosswise | Longitudinal | Crosswise | ||||
Fiberglass Composite Geotextile | GGN30/150 | ≥30 | ≥30 | ≤4 | ≤4 | 12~50 | 2~6 |
GGN50/150 | ≥50 | ≥50 | ≤4 | ≤4 | 12~50 | 2~6 | |
GGN80/150 | ≥80 | ≥80 | ≤4 | ≤4 | 12~50 | 2~6 | |
Fiberglass Geogrid Composite Geotextile | GGM30/150 | ≥30 | ≥30 | ≤4 | ≤4 | 12~50 | 2~6 |
GGM50/150 | ≥50 | ≥50 | ≤4 | ≤4 | 12~50 | 2~6 | |
GGM80/150 | ≥80 | ≥80 | ≤4 | ≤4 | 12~50 | 2~6 | |
High Strength Polyester Fiber Composite Geotextile | GPN25/150 | ≥25 | ≥25 | ≤20 | ≤20 | 12~50 | 2~6 |
GPN50/150 | ≥50 | ≥50 | ≤20 | ≤20 | 12~50 | 2~6 | |
GPN80/150 | ≥80 | ≥80 | ≤20 | ≤20 | 12~50 | 2~6 | |
High Strength Polyester Fiber Geogrid Composite Geotextile | GPM25/150 | ≥25 | ≥25 | ≤20 | ≤20 | 12~50 | 2~6 |
GPM50/150 | ≥50 | ≥50 | ≤20 | ≤20 | 12~50 | 2~6 | |
GPM80/150 | ≥80 | ≥80 | ≤20 | ≤20 | 12~50 | 2~6 | |
Features
•The permeability: be able to handle the construction of modified asphalt pavement under high temperature conditions, effectively prevent water penetration, to avoid the damage of road surface layer and roadbed.
•To prevent and delay the crack reflection: it has low elongation and high tensile strength, and effectively clear the stress at the joint or crack position, reduce the crack expansion and reflection in the pavement,postpone crack reflection.
