Description
Combined Geotextiles and Geogrids provide soil reinforcement and the non woven geotextile provides separation and filtration. The high elongation capacity of monofilament nonwoven geotextiles ensures that the inter-locking ability of the composite geogrid with the fill material is not reduced and stress is transferred to the geogrid.
The composite sandwich layer, reinforced by the biaxial geogrid delivers a more efficient way to transfer load onto underlying layers.
A combination geogrid with a nonwoven filter fabric could provide the combined functions of reinforcement and separation.
Application
Index Properties | 2020KN+150g | 3030KN+150g | 4040KN+150g |
Polymer | PP | ||
Minimum Carbon Black % | 2% | ||
Tensile Strength @ 2% Strain MD kN/m | 7.0 | 10.5 | 14.0 |
Tensile Strength @ 2% Strain TD kN/m | 7.0 | 10.5 | 14.0 |
Tensile Strength @ 5% Strain MD kN/m | 14.0 | 21.0 | 28.0 |
Tensile Strength @ 5% Strain TD kN/m | 14.0 | 21.0 | 28.0 |
Ultimate Tensile Strength MD kN/m | 20.0 | 30.0 | 40.0 |
Ultimate Tensile Strength TD kN/m | 20.0 | 30.0 | 40.0 |
Strain @ Ultimate Strength % | 13.0 | 13.0 | 13.0 |
Geotextile physical properties | 13.0 | 13.0 | 13.0 |
Mass per unit area g/m2 | 150 | 150 | 150 |
Roll Width m | 3.95 | 3.95 | 3.95 |
Roll Length m | 50 | 50 | 50 |
Roll Weight kg | 90 | 120 | 155 |
Features
- reinforcement, filtration, separation and drainage in just one product, reducing aggregate thickness
- Be convenient for construction, reducing cost and maintaining expense for the project
- Providing stability for slopes and avoid the losing of the water and soil
- high resistance against installation damage
- very high strength at low strains

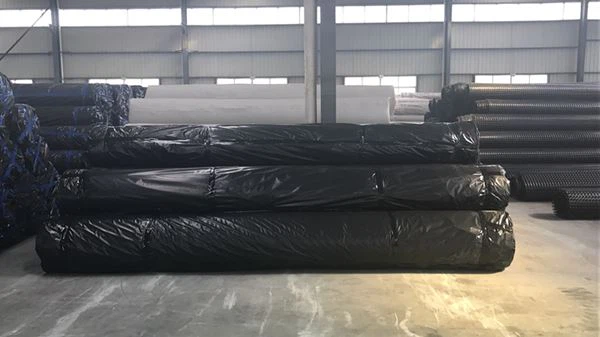

Package
Feicheng Lianyi Engineering Plastics Co., Ltd has been a leader market for more than 16 years in manufacturing geosynthetics material for domestic and export markets.
The products we product are Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid,Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with light
weight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid ( PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE Geomembrane, HDPE Geocell,Mining Geogrid, Geonet, PP Woven Geotextile etc.
